What is Photomonitoring™?


Chosen by infrastructure operators, public bodies and engineering firms across Europe

The technique

How PhotoMonitoring works

1

Acquisition

Cameras in fixed positions — or precisely repositioned at each survey — capture images of the scene, even from kilometres away, with automatic data transfer and full remote management over 4G/5G or Wi-Fi. Acquisition rates go up to one image every 10 seconds.

2

Alignment and normalisation

Algorithms align the images with pixel-accurate precision and normalise illumination differences between acquisitions: clouds, shadows and exposure changes do not turn into false movements.

3

Comparison

Digital Image Correlation measures displacements by comparing image pairs over short and long baselines (multi-baseline analysis); change detection identifies what has changed in the scene. Accuracy is sub-pixel: finer than the pixel size of the image.

4

Results and review

Every detection receives a confidence score, cutting false positives compared with plain motion detection; critical alerts can be routed through human review before notification. The output: full-field displacement maps, time series for points and areas, and change maps ready for early warning workflows.


Applications

Applications of PhotoMonitoring™

Tunnels

Convergence measurement during excavation and in service, with no physical targets on the lining. The measurement follows the deformation of the section at the pace of the works, not at the pace of survey campaigns.

Rockfalls

Automatic rockfall detection and mapping from a fixed observation point: every detachment is counted, measured and archived, building distribution and frequency maps for quantitative hazard assessment.

Landslides

The full-field view of a moving slope: displacement maps and time series on active landslides, supporting the decisions of authorities and asset owners.

Applications · Tunnels

Tunnel convergence monitoring

PhotoMonitoring measures the convergences of existing tunnels and tunnels under construction with no physical targets to install on the lining: no optical targets glued to the lining, no interference with the works. The same configuration follows the tunnel from excavation into service.

By periodically acquiring images from one or more observation points, displacements of the tunnel intrados are measured over time with a temporal approach (displacement time series at any visible point in the image) and a spatial approach (full-field displacement maps that reconstruct the overall deformation field of the section). Images can come from high-resolution industrial devices with automatic data transfer, mounted on poles or on existing structures.

Benefits

No physical targets

No targets or other objects need to be installed in the monitored scene: the measurement is contactless.

Comprehensive spatial data

From the point data of conventional surveying to spatial data: a detailed, complete picture of the deformation of the section.

Remote management

The automated, configurable system can be fully managed remotely.

Applications · Rock walls

Rockfall detection and mapping

From a fixed observation point, PhotoMonitoring identifies, counts and maps detachments from the rock face, even small ones: each event is detected by automatically comparing successive images, measured in area and position, and archived with its before/after evidence. The result is a rockfall counter with distribution and frequency maps that pinpoint the most susceptible portions of the slope — the quantitative basis for hazard assessment and for sizing preventive or protective measures along railways and roads exposed to rockfall, and on quarry and mine faces.

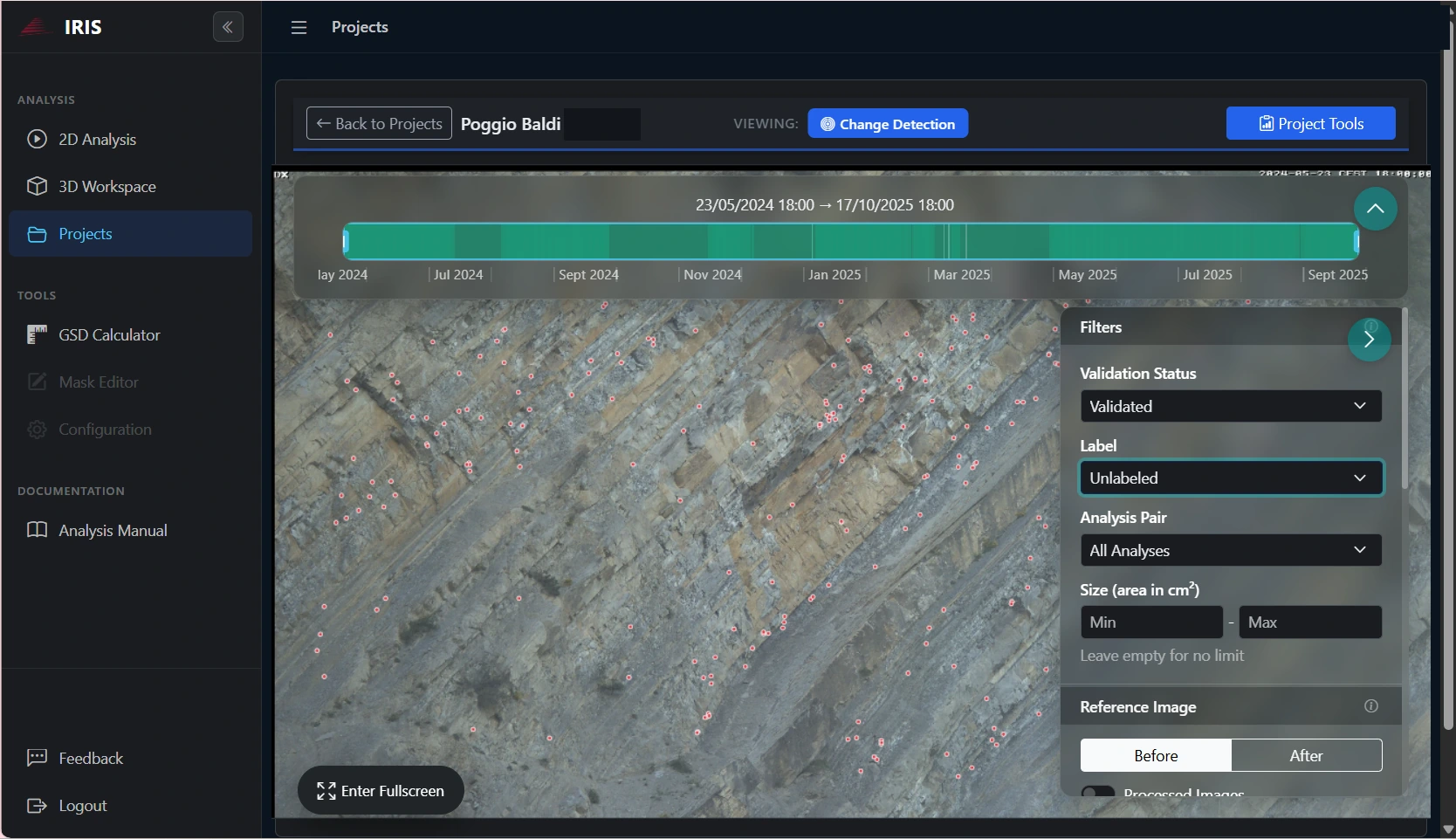

PhotoMonitoring™ rockfall detection on the Poggio Baldi rock face in the IRIS platform

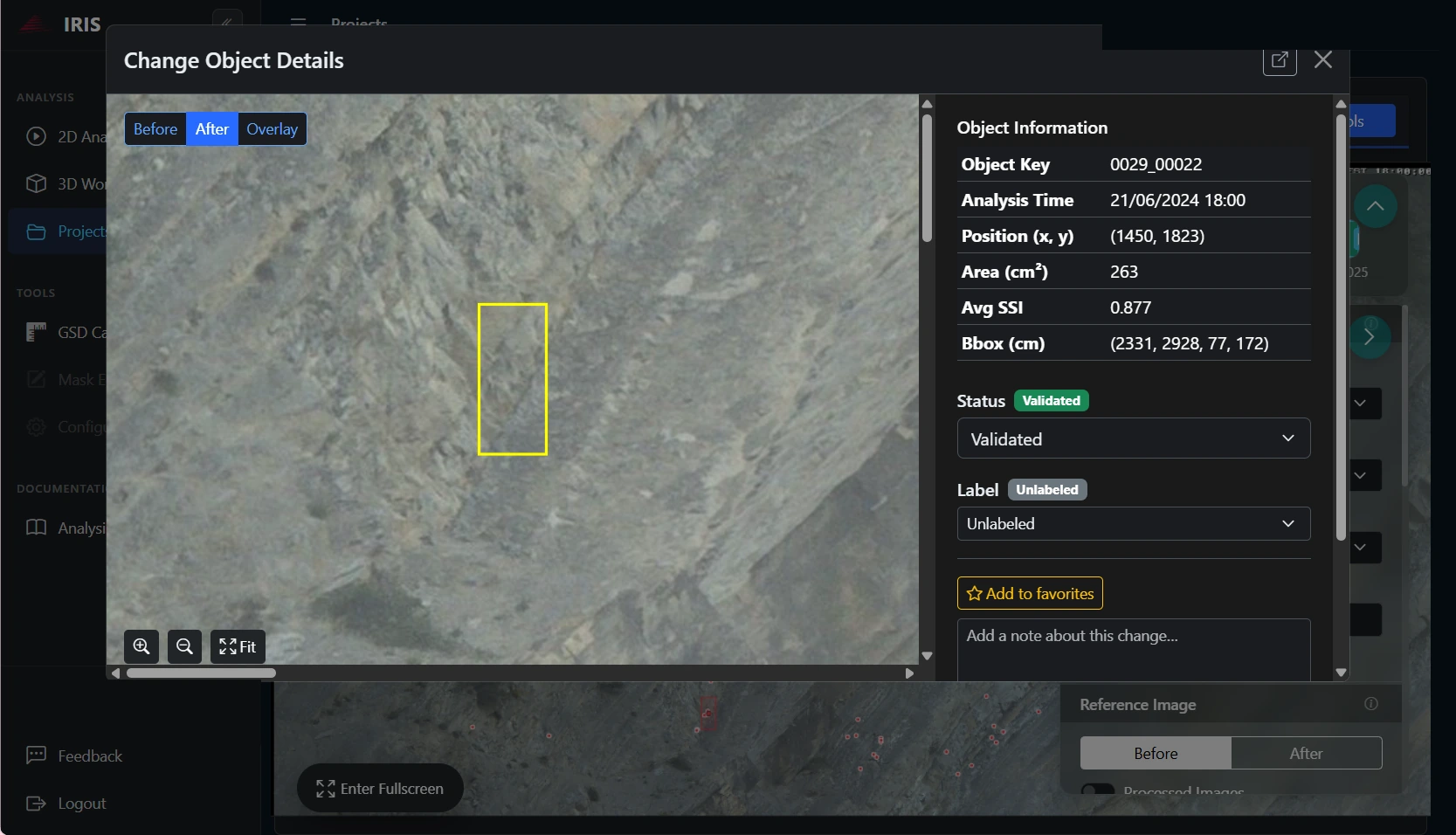

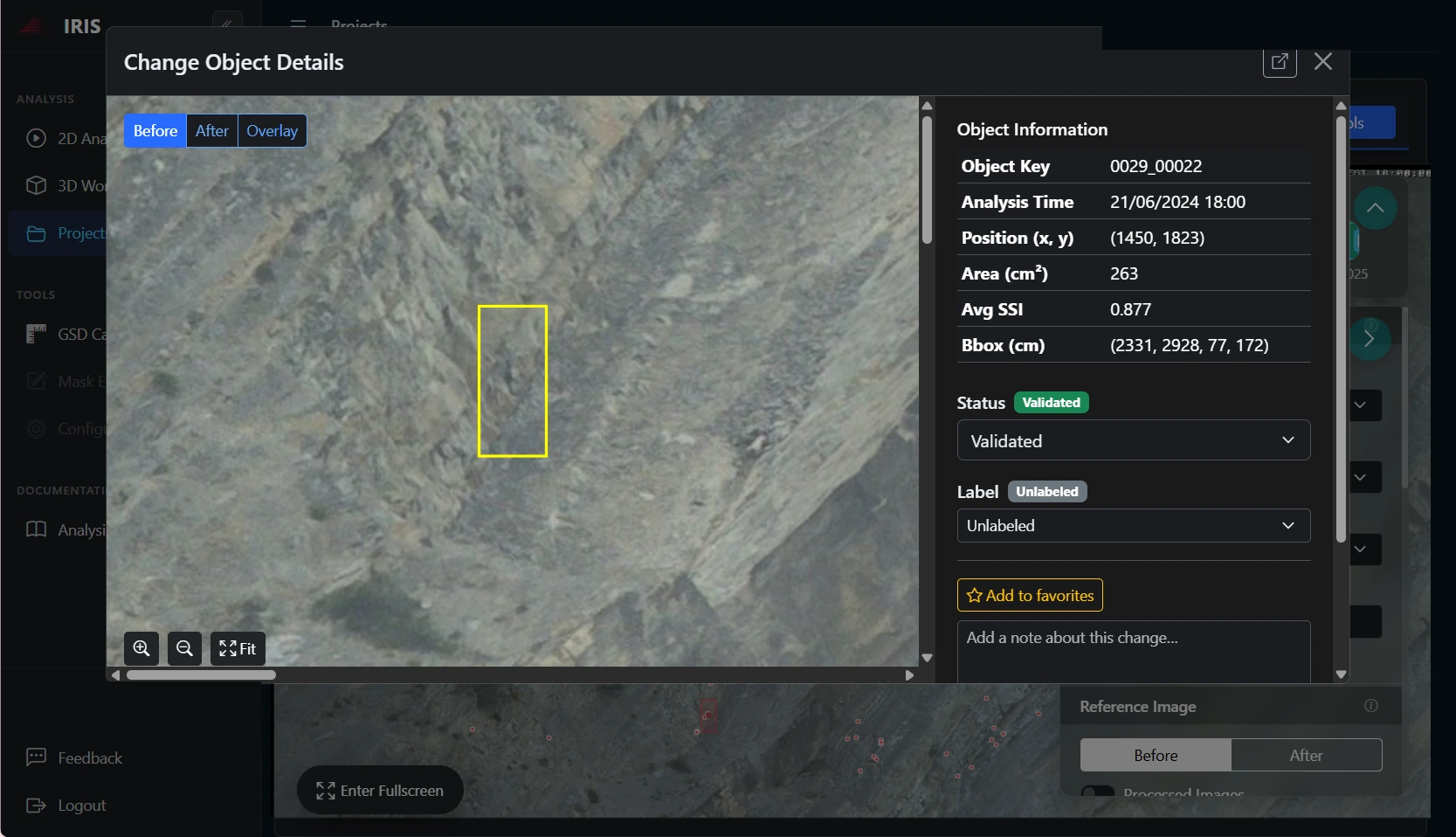

Rock detachment: image before the event Rock detachment: image after the event Change detected by PhotoMonitoring™: detachment automatically highlighted

A single detachment detected automatically: before/after comparison and highlighted change, with measured area and position.

Benefits

Zero physical targets

No need to install targets or other objects in the study scenario.

Change maps

The system computes change maps of the visible portions of the rock face, moving from point data to spatial data.

Fixed observation point

A fixed observation point removes the uncertainty caused by repositioning the instrument between acquisitions, and the system can be fully managed remotely.

Applications · Slopes

Rapid landslide mapping

Cameras in strategic positions, at one or more observation points, follow the slope with multiple updates per day: PhotoMonitoring delineates moving areas, measures their displacement rates and produces change maps of the visible portions of the slope, with nothing installed on the ground. It is a non-invasive method that returns a timely, detailed assessment of ground changes — including on phenomena with very rapid, impulsive evolution; time series make it possible to correlate accelerations with rainfall, earthquakes and other external drivers.

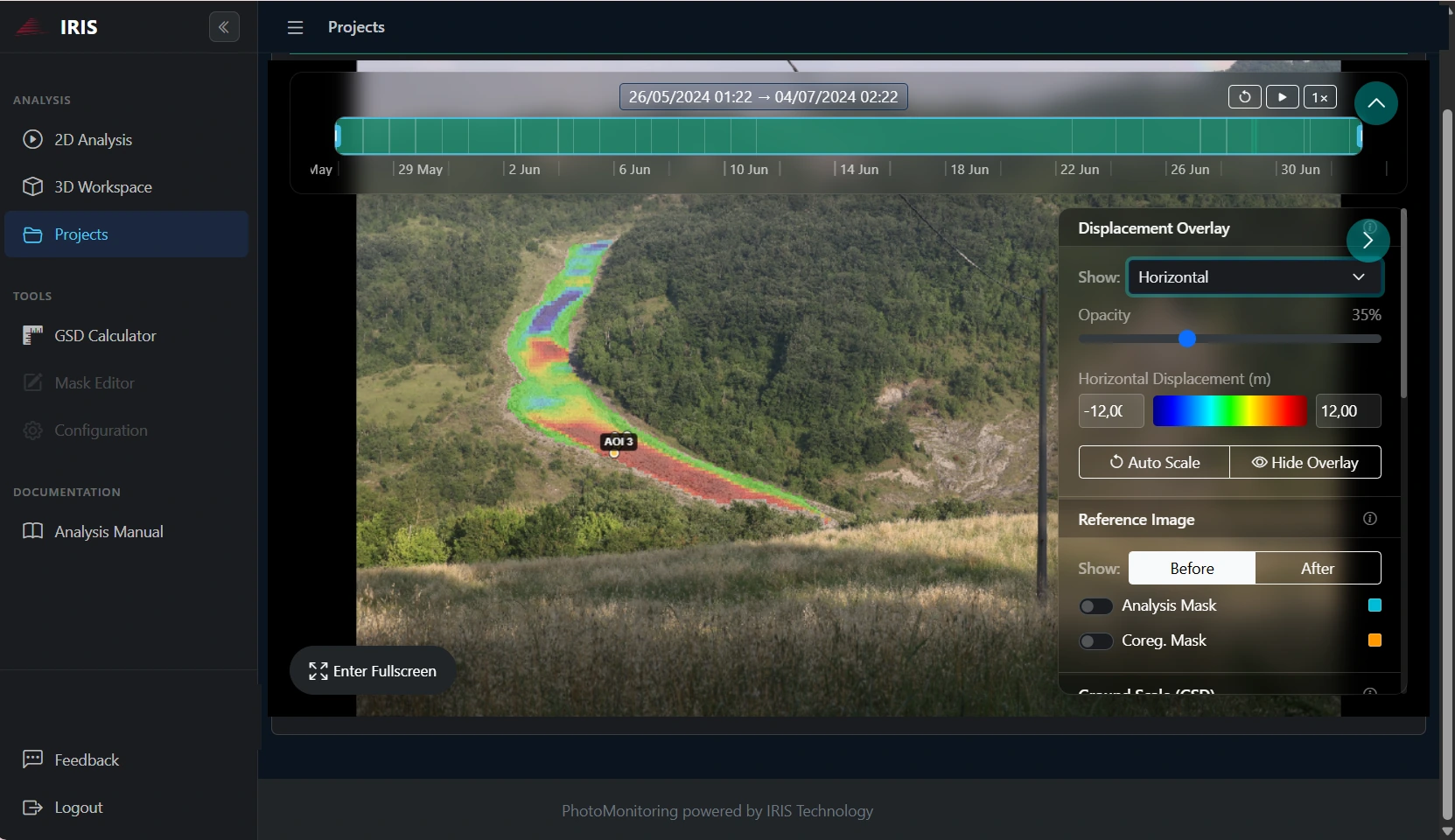

PhotoMonitoring™ analysis of a landslide: horizontal displacement map in the IRIS platform

Horizontal displacement map of a moving slope: colours measure movement, point by point.

Benefits

Detailed maps

Change maps of the visible portions of the slope or escarpment: from point data to spatial data.

Adjustable acquisition frequency

Image acquisition frequency can be increased or reduced according to weather conditions and to how fast the phenomenon evolves.

Decision support

Maps and time series support the decisions of authorities and asset owners, who can adopt risk mitigation measures and protect vulnerable areas.

The platform

IRIS: the PhotoMonitoring platform

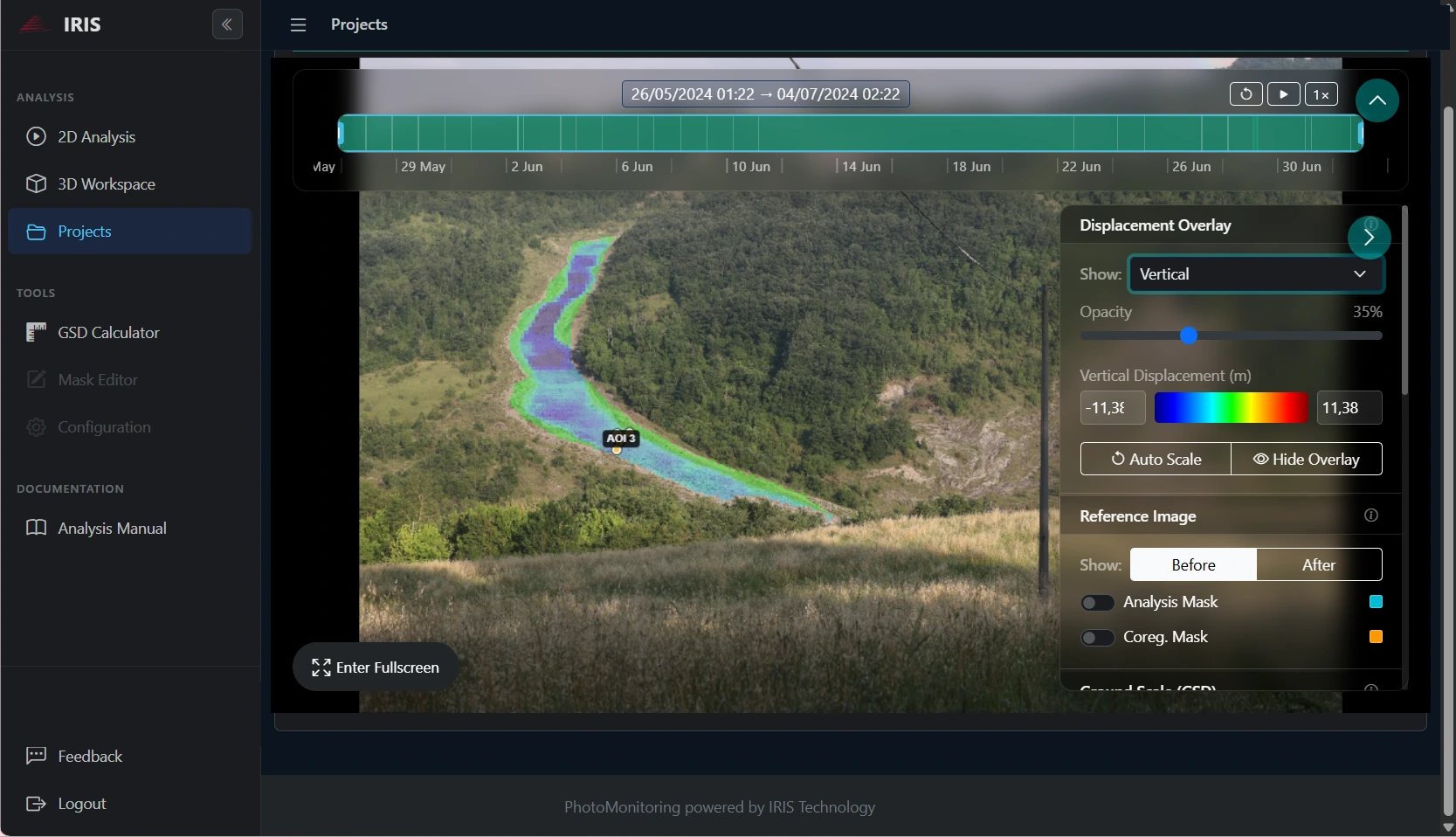

IRIS platform for PhotoMonitoring™: vertical displacement map of the monitored scenario with the analysis results

IRIS Terrestrial processes images from ground-based cameras to measure surface displacements and changes on landslides, rock faces, structures and tunnels. IRIS Aerial works on drone imagery, for repeated surveys in hard-to-reach areas. IRIS Satellite analyses panchromatic and hyperspectral satellite imagery to track changes of the Earth's surface over wide areas and long time spans, supporting monitoring plans and engineering projects.

IRIS ingests images from virtually any source:

  • live video streams (RTSP, HLS, MJPEG) and HTTP snapshots from IP cameras and webcams;
  • DSLR time-lapse rigs and photographic systems already installed on site;
  • remote archives over SFTP/HTTPS and cloud storage;
  • batch processing of historical archives: photographs taken over the years become a monitoring series.

And it returns results built for decisions and for technical scrutiny:

  • displacement and change maps, with time series for points and areas — displacement monitoring data ready for reporting;
  • downloadable before/after evidence packages, with a searchable audit trail and trend reports;
  • alerts via dashboard, email and API, with automatic escalation on critical events;
  • Continuous multi-site monitoring, with alerts minutes after images arrive.

For repeated surveys, IRIS also compares 3D point clouds directly in the browser using the M3C2 algorithm, the reference standard for point cloud comparison: volumetric change maps between two epochs, automatic clustering of changed areas, volume and surface computation, and a 3D viewer you can share with a link.

Three ways to start: connect the cameras already on site, stream images from remote stations, or opt for full-service installation with NHAZCA field engineers, from station design to commissioning.

The CARE system

The CARE system: PhotoMonitoring without a fixed station

Not every scene justifies a permanent installation. The CARE system, developed by NHAZCA, enables precise repositioning of the sensor at every survey: the camera returns to exactly the same shooting position, reducing processing errors caused by framing changes, and images from different campaigns become comparable as if they came from a fixed station. It works with any camera — smartphones included — making periodic surveys possible even where a fixed system is impractical or disproportionate to the risk.

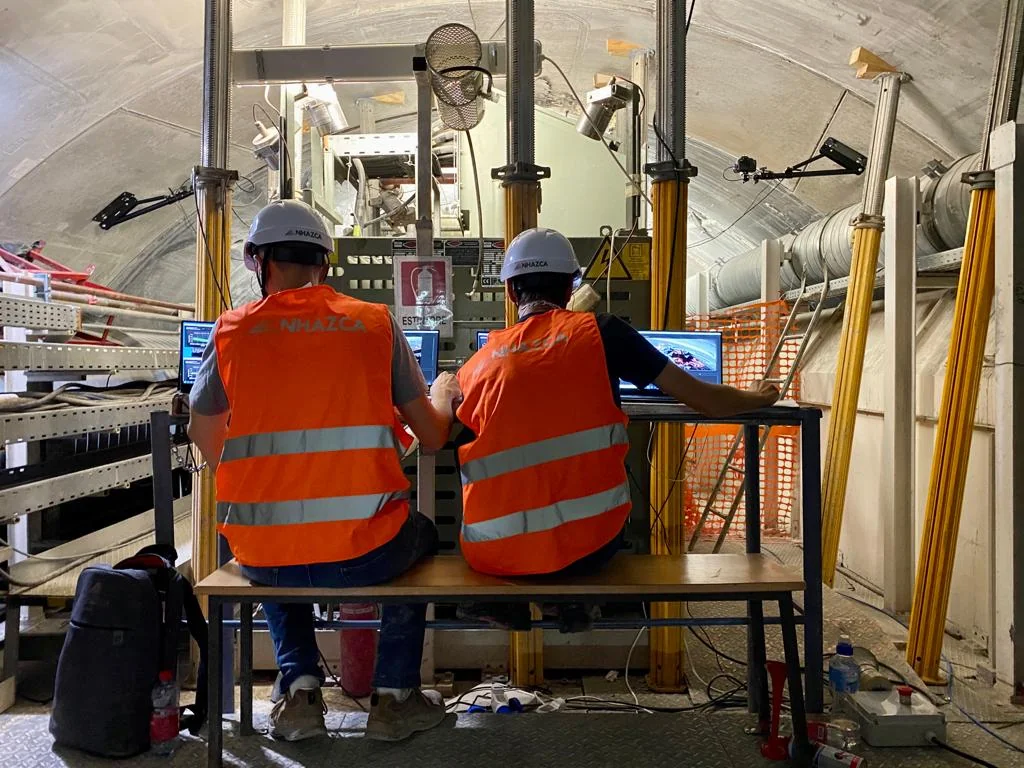

NHAZCA technicians at their laptops inside a tunnel, with monitoring cameras and floodlights mounted on the vault

The NHAZCA approach

PhotoMonitoring and conventional instrumentation

Point-based instruments

  • What it measures — Single points, where the instrument is installed
  • Spatial coverage — Discrete: a few points per site
  • Contact with the phenomenon — Requires installation on the point being measured
  • When it is the right choice — Alarm thresholds on known critical points

PhotoMonitoring

  • What it measures — The whole framed scene, full-field
  • Spatial coverage — Continuous: displacement and change maps
  • Contact with the phenomenon — Contactless: measures from a distance, even where access is impossible
  • When it is the right choice — Delineating phenomena, discovering where movement is happening, multiplying measurement points without multiplying sensors

Inside NHAZCA services

Where PhotoMonitoring is used

  • Active landslides and retreating coastal cliffs
  • Rock faces along railways and roads, with rockfall and track obstruction detection
  • Tunnel portals and headings, convergence during excavation
  • Quarry and mine faces
  • Excavations and construction sites
  • Dams and large structures, including crack pattern monitoring
  • Debris flows and avalanches
  • Areas affected by subsidence and settlement

Case studies

Benefits

The advantages of PhotoMonitoring™

Reliability

Quantitative measurements, not impressions: sub-pixel accuracy, a confidence score on every detection and optional human review on critical alerts. Measurements of surface displacements and changes you can base stability assessments and targeted interventions on — with fewer false positives.

Versatility

From industrial cameras to a smartphone with the CARE system, from a single rock face to continuous multi-site monitoring, from natural hazard management to civil engineering and land use planning: the same technology adapts to the scene, the distance and the level of risk.

Traceability

Every event stays documented: downloadable before/after comparisons, a searchable audit trail and complete historical series. When you need to prove what happened and when, the evidence is there.

Find out more about PhotoMonitoring by downloading our brochure

Further reading

Technical references on PhotoMonitoring

FAQ

Frequently asked questions about PhotoMonitoring

What is PhotoMonitoring?

How accurate is PhotoMonitoring?

Which cameras can be used?

Does PhotoMonitoring work at night or in bad weather?

Does PhotoMonitoring replace inclinometers and extensometers?

How does camera-based rockfall detection work?
